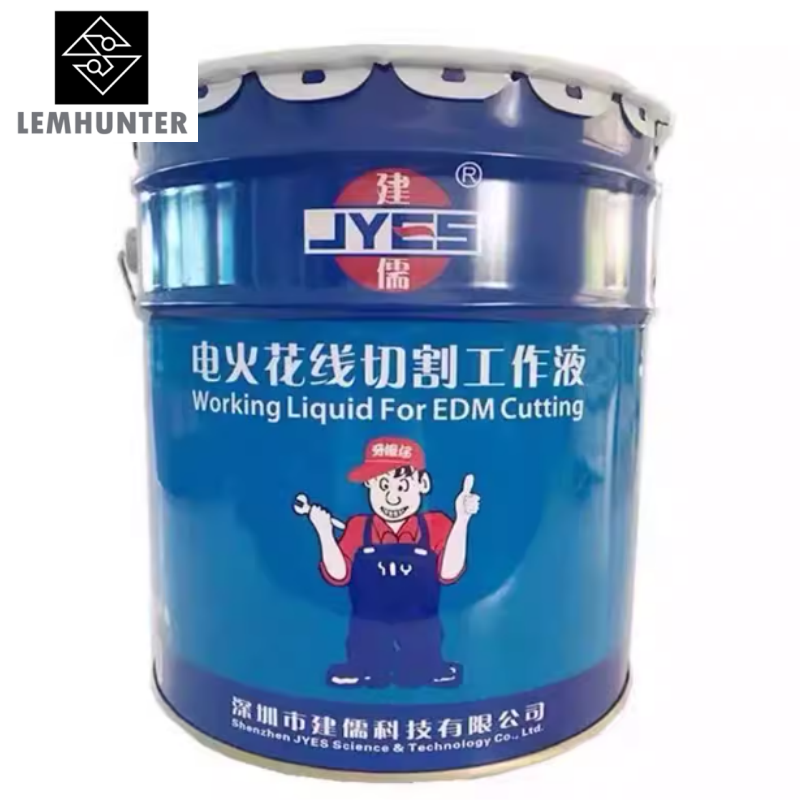

Model: EDM wire cutting fluid (water-based)
Net content: 16KG
Shelf life: 18 months
This product is an environmentally friendly product with excellent cooling, washing, lubrication, rust prevention, cleaning and arc extinguishing functions. It does not contain minerals, nitrites, or phosphorus, and fully complies with national emission standards. It is a new generation of environmentally friendly and non-toxic products. It is suitable for high-current cutting (fast wire cutting machine tools > 3A, medium wire cutting machine tools > 5A), and works stably. It is suitable for multiple cutting and repairing and large thickness cutting. It is the best among EDM wire cutting working fluids!
1.The water ratio is 1:20 or above. Users can increase or decrease the water ratio according to personal needs. Avoid using hard water (well water, river water). Liquid products are easy to mix and can be stirred slightly.
2. When replacing the original working fluid with this product, the entire liquid supply circulation system should be thoroughly cleaned and an appropriate filter should be used (10um or less is recommended for medium wire cutting). Do not mix with other working fluids to avoid affecting the cutting effect. After the newly configured working fluid is put on the machine and circulated for a few minutes, cutting can begin. After working for a period of time, the working fluid enters the best working state!
3. After cutting, please use a magnet to hold the workpiece to prevent the workpiece from falling and breaking the molybdenum wire.
When cutting with large thickness, the frequency conversion tracking should be appropriately slowed down. It is best to adjust it from zero position until the cutting is stable and the ammeter pointer is no longer shaking violently. Set appropriate processing parameters according to the cutting thickness and material to improve processing efficiency and surface quality.
